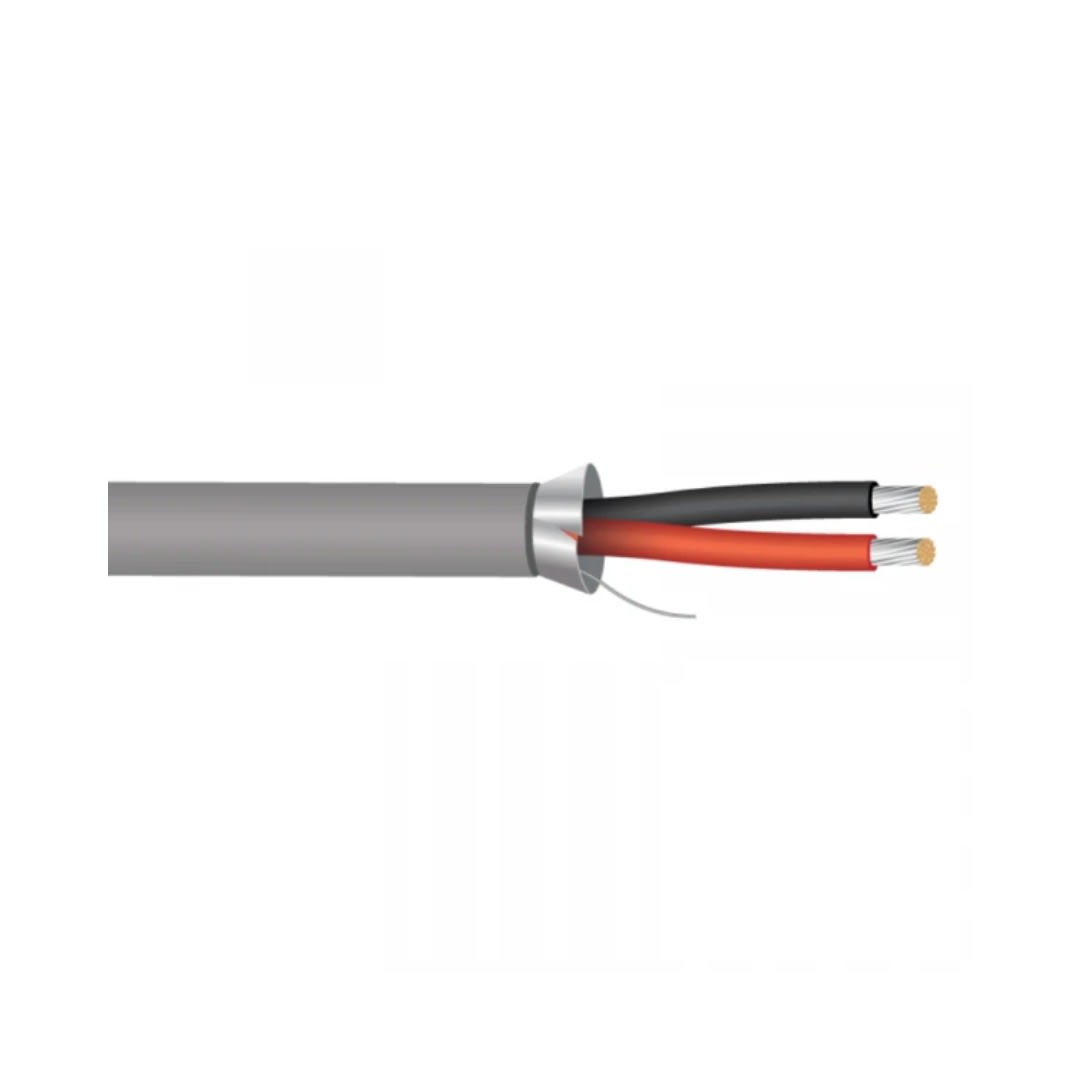

Belden 5200FE 16 AWG 2-Conductor Shielded CMR Riser Cable

Model: 5200FE

Key Specifications

  • 16 AWG 2-Conductor Stranded (19x29) Bare Copper
  • Beldfoil® Aluminum Foil-Polyester Tape Shield (100% Coverage)
  • CMR (Riser) Rated for vertical shaft installations
  • Polypropylene (PP) Insulation with Ripcord and PVC Jacket
info

Enterprise Bulk Pricing

Need 10+ units for your office? Contact our B2B sales team for a custom quote.

Get Bulk Quote →
ASK FOR PRICE
Incl. VAT

Sold By

Server Zone Computer Trading Official Store

blockOut of Stock
verifiedCondition: new

Estimated Delivery

... - ...

Standard shipping for United Arab Emirates

Full Shipping Details →
REQUEST BULK QUOTEWhatsApp for Inquiry

Specifications

BrandBelden
Model5200FE
ColorGray
MaterialsBare Copper, Polypropylene, Aluminum-Polyester, PVC
Dimensions0.184 in (Diameter)
Weight24 lbs/1000ft
Conductor Size16 AWG
Number of Conductors2
Stranding19x29
ShieldingBeldfoil® 100% Overall Foil
Drain Wire24 AWG Tinned Copper
Voltage Rating300 V RMS
Flame RatingUL1666 Vertical Shaft, FT4
ComplianceRoHS, CE, EU Directive 2011/65/EU
NEC ComplianceArticle 800, CMR
Max Current6.25 Amps per conductor @ 25°C
Nominal Conductor DCR4.0 Ohms/1000ft
Nominal Capacitance58 pF/ft (Conductor to Conductor)
Maximum Operating Temperature75°C
Minimum Operating Temperature-20°C
Bend Radius1.9 in (Installation)
RipcordYes
ApplicationSecurity Systems, Intercom/PA, Sound/Audio, Power-Limited Controls
Shipping Weight10.89 kg
