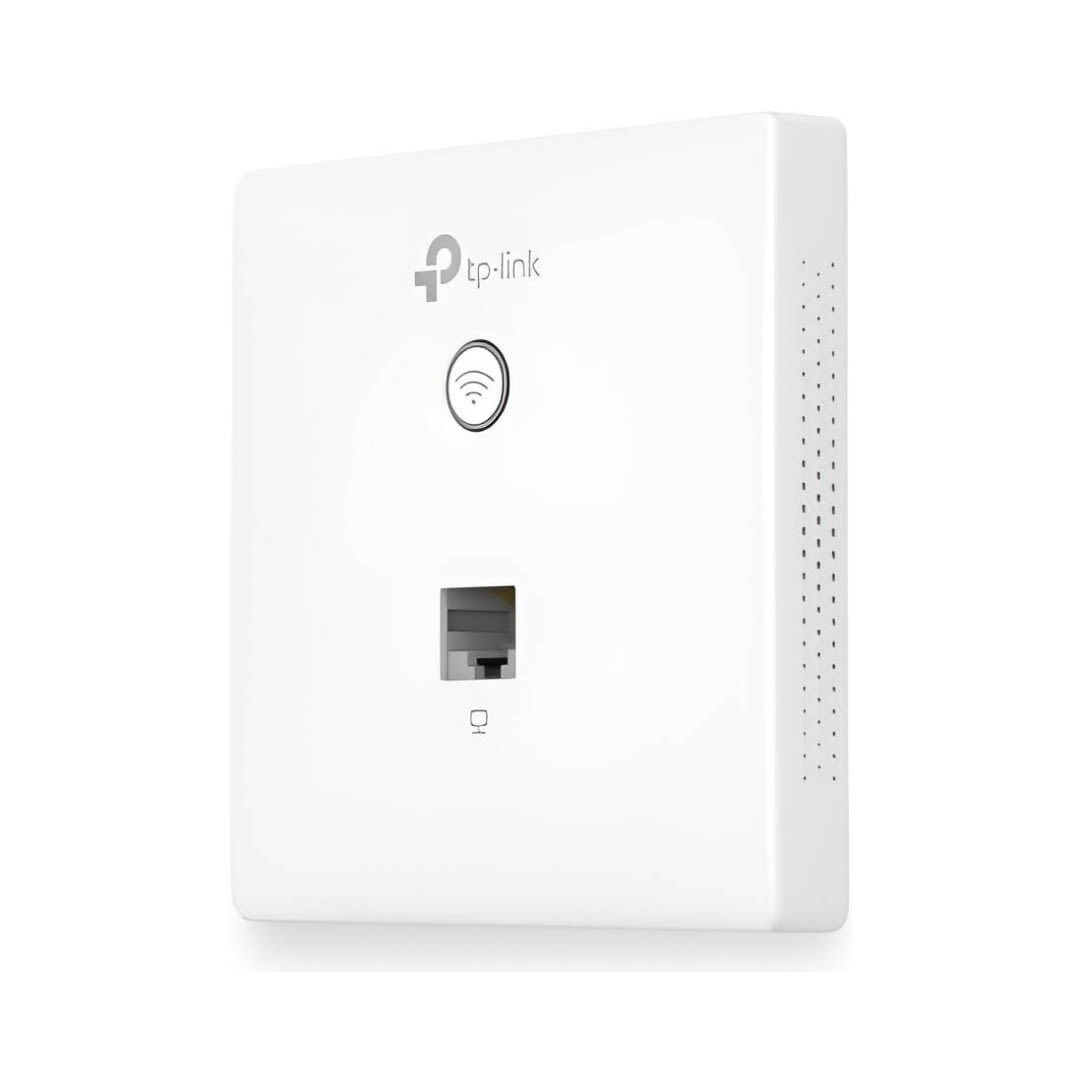

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
Brand: TP-LINK
What is this product?
AC1200 Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. Gigabit Connectivity: 1× Gigabit Uplink port and 1× Gigabit Downlink port. Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring. Compact Design: Ultra-slim 11 mm profile compatible with 86 mm & EU/US standard junction boxes. Power over Ethernet: Supports 802.3af/at PoE for flexible deployment. MU-MIMO and Beamforming: Improved network efficiency and targeted signal strength.
Use cases
- Standard 86 mm, EU, and US Junction Boxes
Specifications
- Brand
- TP-Link
- Model
- EAP230-Wall
- Color
- White
- Materials
- PC + ABS Plastic
- Dimensions
- 86.8 × 86.8 × 30.2 mm
- Weight
- 0.17 kg
- Connectivity
- 1× Gigabit Uplink Port, 1× Gigabit Downlink Port
- Power
- 802.3af/at PoE Support, 7W Consumption
- Wireless Speed
- 5 GHz: Up to 867 Mbps; 2.4 GHz: Up to 300 Mbps
- Frequency
- 2.4 GHz and 5 GHz
- Management
- Omada App, Centralized Controller, Cloud Access
- Security
- WPA-Enterprise, WPA2-Enterprise, WEP, WPA-PSK, WPA2-PSK
- Certifications
- CE, FCC, RoHS
- Compatibility
- Standard 86 mm, EU, and US Junction Boxes
- Form Factor
- In-Wall Plate
- Maximum Operating Temperature
- 40°C
- Included Accessories
- Installation Guide, Mounting Screws
- Antenna Gain
- 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 4 dBi
- Transmission Power
- CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz); FCC: <21 dBm (2.4 GHz), <21 dBm (5 GHz)
Product identifiers
- Model: EAP230-Wall
- MPN: EAP230-WALL
- GTIN: 845973089603
Frequently asked questions
What is TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall?
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall is listed by Server Zone Computer Trading in Dubai, UAE.
Is TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall available in the UAE?
Server Zone supplies IT products to customers in Dubai and across the UAE.
Can I request a bulk quote for TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall?
Use the bulk quote option on the product page for business pricing.
Does Server Zone provide a tax invoice?
Server Zone Computer Trading L.L.C is a registered UAE business. Tax invoices are available per standard checkout.
What warranty applies to TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall?
Warranty depends on the manufacturer. See the product page and our warranty policy.
TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
Key specifications
- AC1200 Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.
- Gigabit Connectivity: 1× Gigabit Uplink port and 1× Gigabit Downlink port.
- Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
- Compact Design: Ultra-slim 11 mm profile compatible with 86 mm & EU/US standard junction boxes.
- Power over Ethernet: Supports 802.3af/at PoE for flexible deployment.
- MU-MIMO and Beamforming: Improved network efficiency and targeted signal strength.
