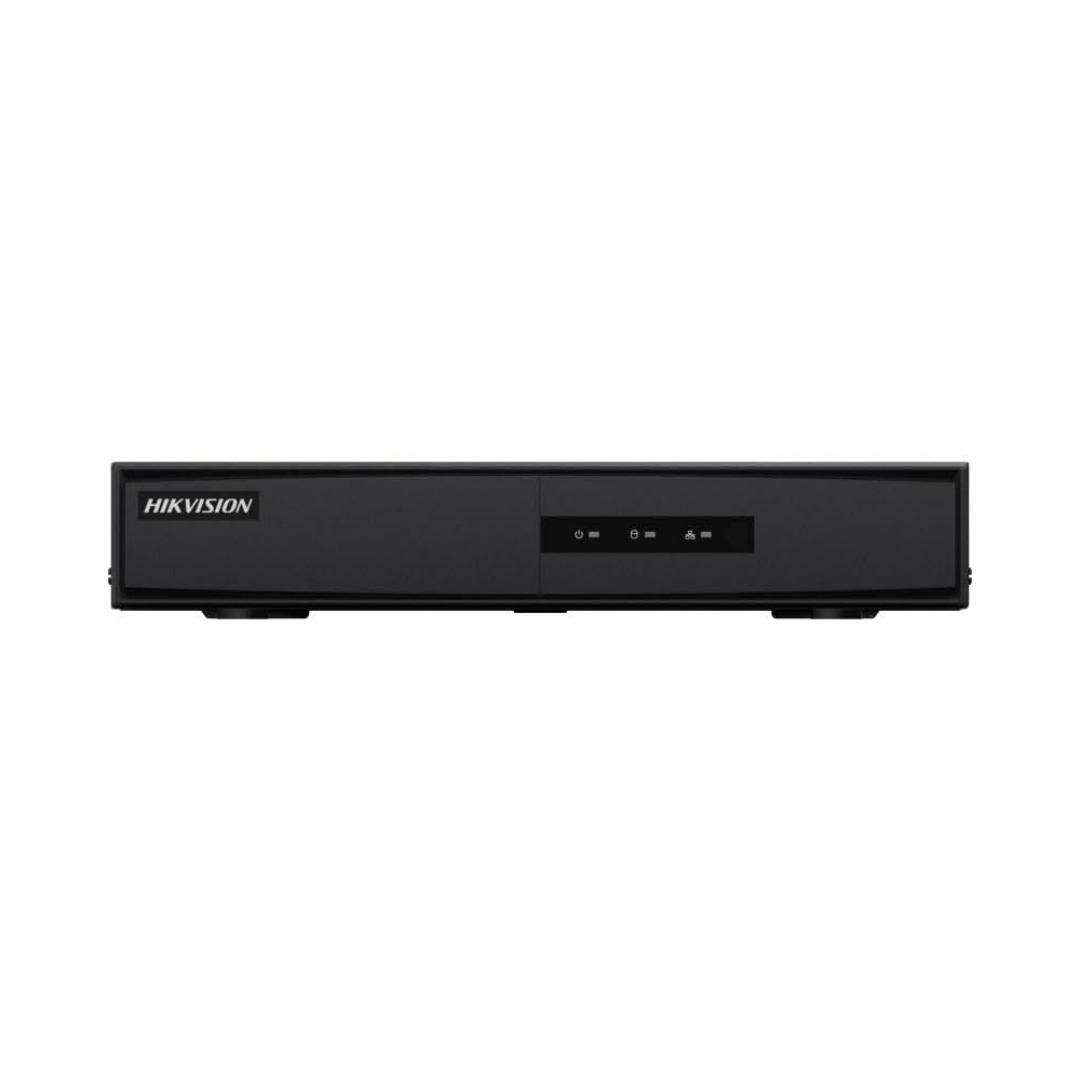

Hikvision DS-7104NI-Q1/4P(M) 4-Channel Mini 1U 4 PoE Network Video Recorder
Brand: Hikvision
Category: Nvr
What is this product?
4-Channel IP video input with 4 independent PoE interfaces Supports H.265+/H.265/H.264+/H.264 video formats Up to 6 MP high-definition recording and synchronous playback 40 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth Metal chassis for improved heat dissipation and durability HDMI and VGA simultaneous output at 1920 × 1080p resolution
Use cases
- ONVIF, Hik-Connect, TCP/IP, DHCP, DNS
Compatibility
- 2 × USB 2.0
- 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Specifications
- Brand
- Hikvision
- Model
- DS-7104NI-Q1/4P(M)
- Video Input
- 4-Channel IP
- Maximum Recording Resolution
- 6 MP
- Decoding Capacity
- 4-ch @ 1080p (30 fps) / 1-ch @ 6 MP (30 fps)
- Video Compression
- H.265+/H.265/H.264+/H.264
- Incoming Bandwidth
- 40 Mbps
- Outgoing Bandwidth
- 60 Mbps
- PoE Ports
- 4x RJ-45 10/100 Mbps (IEEE 802.3 af/at)
- PoE Budget
- 36W
- Storage
- 1 SATA interface (Supports up to 6TB HDD)
- HDMI Output
- 1-ch, 1920 × 1080p/60Hz
- VGA Output
- 1-ch, 1920 × 1080p/60Hz
- USB Interface
- 2 × USB 2.0
- Network Interface
- 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Form Factor
- Mini 1U
- Materials
- Metal Chassis
- Dimensions
- 265 × 223 × 48 mm (10.4" × 8.8" × 1.9")
- Weight
- ≤ 1 kg (2.2 lb) without HDD
- Power Supply
- 48 VDC, 1 A
- Power Consumption
- ≤ 10 W (without HDD and PoE off)
- Operating Temperature
- -10 °C to +55 °C
- Certifications
- CE, EN50130-4, EN 61000-3-2, EN 61000-3-3
- Compatibility
- ONVIF, Hik-Connect, TCP/IP, DHCP, DNS
- Included Accessories
- USB Mouse, Power Adapter, SATA Data/Power Cable
Product identifiers
- Model: DS-7104NI-Q1/4P(M)
- MPN: DS-7104NI-Q1/4P(M)
Frequently asked questions
What is Hikvision DS-7104NI-Q1/4P(M) 4-Channel Mini 1U 4 PoE Network Video Recorder?
Hikvision DS-7104NI-Q1/4P(M) 4-Channel Mini 1U 4 PoE Network Video Recorder is listed by Server Zone Computer Trading in Dubai, UAE.
Is Hikvision DS-7104NI-Q1/4P(M) 4-Channel Mini 1U 4 PoE Network Video Recorder available in the UAE?
Server Zone supplies IT products to customers in Dubai and across the UAE.
Can I request a bulk quote for Hikvision DS-7104NI-Q1/4P(M) 4-Channel Mini 1U 4 PoE Network Video Recorder?
Use the bulk quote option on the product page for business pricing.
Does Server Zone provide a tax invoice?
Server Zone Computer Trading L.L.C is a registered UAE business. Tax invoices are available per standard checkout.
What warranty applies to Hikvision DS-7104NI-Q1/4P(M) 4-Channel Mini 1U 4 PoE Network Video Recorder?
Warranty depends on the manufacturer. See the product page and our warranty policy.
Hikvision DS-7104NI-Q1/4P(M) 4-Channel Mini 1U 4 PoE Network Video Recorder
Key Specifications
- 4-Channel IP video input with 4 independent PoE interfaces
- Supports H.265+/H.265/H.264+/H.264 video formats
- Up to 6 MP high-definition recording and synchronous playback
- 40 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
- Metal chassis for improved heat dissipation and durability
- HDMI and VGA simultaneous output at 1920 × 1080p resolution
