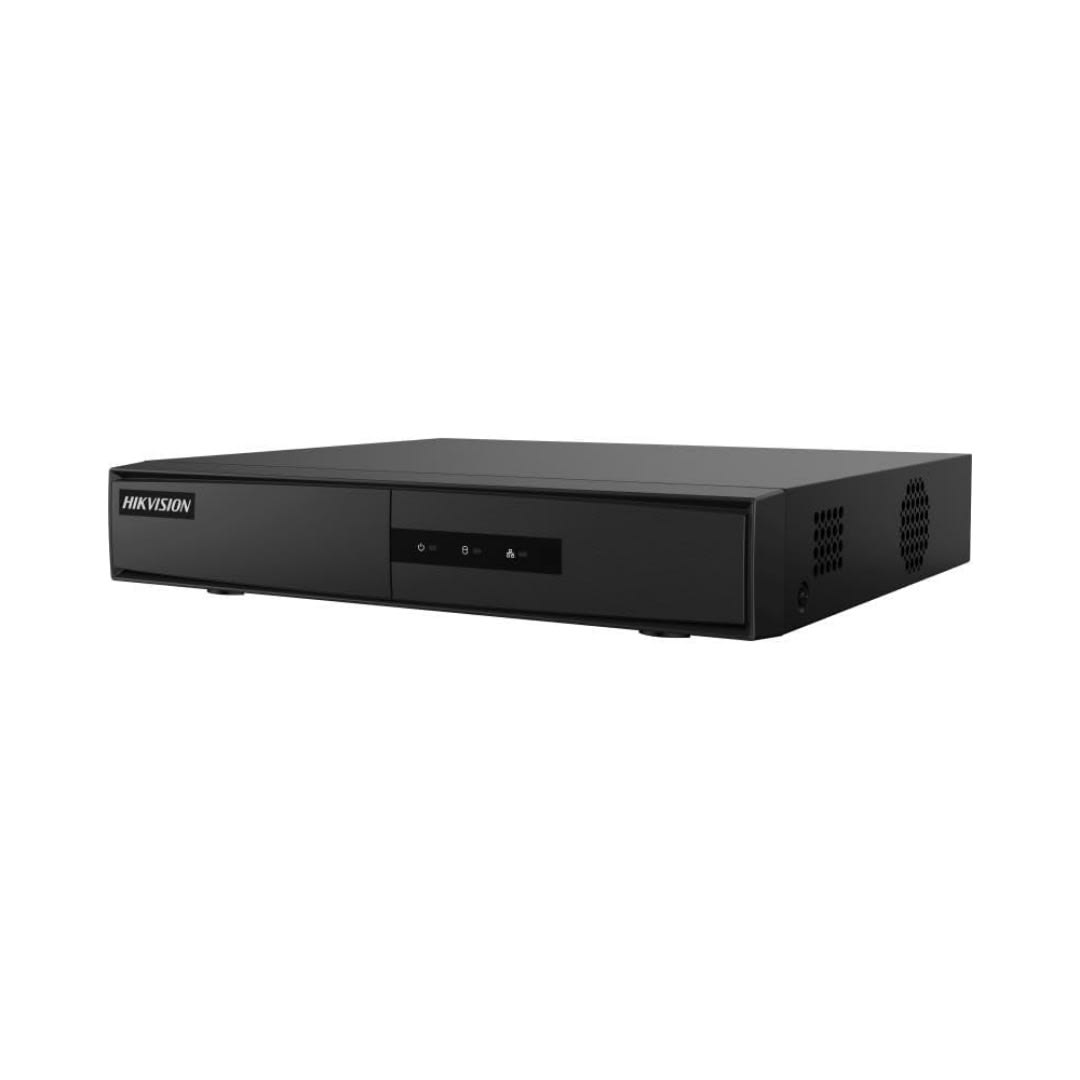

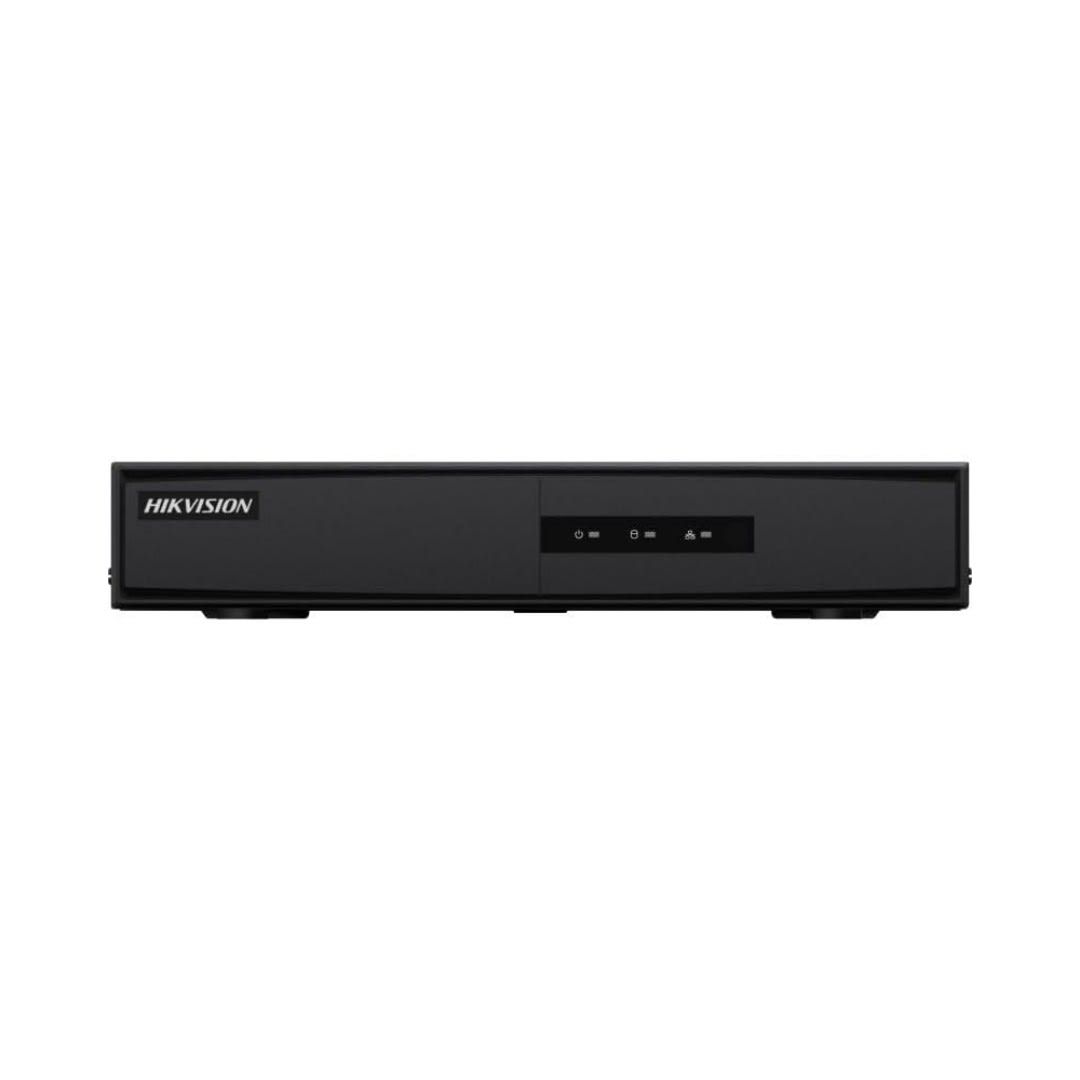

Hikvision DS-7104NI-Q1/4P(M) 4-Channel Mini 1U 4 PoE Network Video Recorder

Model: DS-7104NI-Q1/4P(M)

Key Specifications

  • 4-Channel IP video input with 4 independent PoE interfaces
  • Supports H.265+/H.265/H.264+/H.264 video formats
  • Up to 6 MP high-definition recording and synchronous playback
  • 40 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
  • Metal chassis for improved heat dissipation and durability
  • HDMI and VGA simultaneous output at 1920 × 1080p resolution
info

Enterprise Bulk Pricing

Need 10+ units for your office? Contact our B2B sales team for a custom quote.

Get Bulk Quote →
AED 249
Incl. VAT
17% OFFWas AED 299

Sold By

Server Zone Official Store

In Stock
verifiedCondition: new

Estimated Delivery

17 Apr - 19 Apr

Standard shipping for United Arab Emirates

Full Shipping Details →

Specifications

BrandHikvision
ModelDS-7104NI-Q1/4P(M)
Video Input4-Channel IP
Maximum Recording Resolution6 MP
Decoding Capacity4-ch @ 1080p (30 fps) / 1-ch @ 6 MP (30 fps)
Video CompressionH.265+/H.265/H.264+/H.264
Incoming Bandwidth40 Mbps
Outgoing Bandwidth60 Mbps
PoE Ports4x RJ-45 10/100 Mbps (IEEE 802.3 af/at)
PoE Budget36W
Storage1 SATA interface (Supports up to 6TB HDD)
HDMI Output1-ch, 1920 × 1080p/60Hz
VGA Output1-ch, 1920 × 1080p/60Hz
USB Interface2 × USB 2.0
Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Form FactorMini 1U
MaterialsMetal Chassis
Dimensions265 × 223 × 48 mm (10.4" × 8.8" × 1.9")
Weight≤ 1 kg (2.2 lb) without HDD
Power Supply48 VDC, 1 A
Power Consumption≤ 10 W (without HDD and PoE off)
Operating Temperature-10 °C to +55 °C
CertificationsCE, EN50130-4, EN 61000-3-2, EN 61000-3-3
CompatibilityONVIF, Hik-Connect, TCP/IP, DHCP, DNS
Included AccessoriesUSB Mouse, Power Adapter, SATA Data/Power Cable
Shipping Weight1 kg
